سعر Portable Handheld Osciloscope FNIRSI DSO-510

11 500 دج

السلام عليكم
للطلب أو الاستفسار حول أي منتج في متجرنا لا تترددوا في الاتصال
/

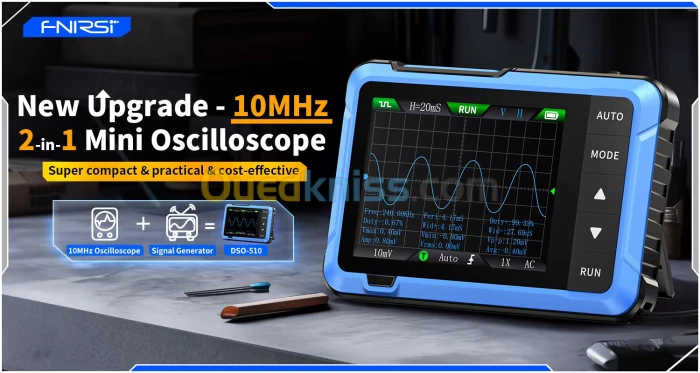

DSO510: High-Performance Flagship Model

The DSO510 is a powerful oscilloscope, offering advanced performance suitable for complex signal testing, research, and development. This model is an excellent choice for professionals handling intricate repairs or education environments requiring precise measurements.

Real-time Sampling Rate: 48MS/s

Bandwidth: 10MHz

Signal Type Support: Periodic analog signals and non-periodic digital signals

Trigger Modes: Single, Normal, Auto

Voltage Measurement Range: ±400V

Signal Generator: 50KHz

Key Features:

One-Click AUTO Mode: Displays waveforms instantly without complex adjustments.

HD LCD Screen: 2.8-inch display with 320×240 resolution.

Battery Life: Built-in 1000mAh lithium battery supports up to 4 hours of continuous use.

Recommended Use: Ideal for advanced repairs, development, and education projects.
DSO510 2 IN 1 —— 10MHz Bandwidth

* Mini Oscilloscope *

Channel：1

Sampling rate：48MSa/s

Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way）

Time base range：50ns/Div-20s/Div（Progress according to the 1-2-5 way）

Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)

Trigger method：Auto / Normal / Single

Coupling method：AC/DC

* Signal generator *

Frequency：0-50KHz

Duty cycle：0-100% (rectangular and sawtooth waves)

Amplitude：

Waveforms：Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.

* Other Parameters *

Display：2.8 inches/PPI:320*240

USB charging：5V/1A

Lithium battery capacity：1000mAh

Size：

Weight：104g

DSO153 2 IN 1—— 1MHz Bandwidth

* Mini Oscilloscope *

Channel：1

Sampling rate：5MSa/s

Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way）

Time base range：500ns/Div-20s/Div（Progress according to the 1-2-5 way）

Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)

Trigger method：Auto / Normal / Single

Coupling method：AC/DC

* Signal generator *

Frequency：0-10KHz

Duty cycle：0-100% (rectangular and sawtooth waves)

Amplitude：

Waveforms：Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal,

multi tone, Sink pulse, Lorentz wave.

* Other Parameters *

Display：2.8 inches/PPI:320*240

USB charging：5V/1A

Lithium battery capacity：1000mAh

Size：

Weight：100g
