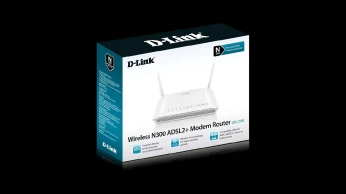

D-Link Modem Wireless Router N300 DSL-2750 + 3G

7 500 DA

Peripheral interfaces

1 ADSL RJ-11 port
4 10/100BASE-TX MDI/MDIX ports
802.11n Wireless LAN
1 USB 2.0 port

Wireless network

802.11b/g/n standards
Up to 300 Mbps (802.11n)
Frequency range: 2.4 GHz to 2.484 GHz
2 non-detachable MIMO antennas
64 or 128-bit WEP data encryption
WPA/WPA2 Security (Personal/Enterprise)
802.1x RADIUS
WPS (Wi-Fi Protected Setup)
MAC address based access control

ADSL standards

ADSL standards: Multi-mode, ANSI T1.413 Version 2, ITU G.992.1 (G.dmt) Annex A, ITU G.992.2 (G.lite) Annex A, ITU G.994.1 (G.hs)
ADSL2 standards: ITU G.992.3 (G.dmt.bis) Annex A/L/M, ITU G.992.4 (G.lite.bis) Annex A
ADSL2+ standards: ITU G.992.5 Annex A/L/M

ADSL data rates

G.dmt: 8 Mbits/s down, 832 kbits/s up
G.lite: 1.5 Mbits/s down, 512 kbits/s up
ADSL2+: 12 Mbit/s download, 1 Mbit/s upload
ADSL2+: 24 Mbits/s download, 1 Mbit/s upload

ATM and PPP protocols

ATM Adaptation Layer 5 (AAL5)
Bridged or Routed Ethernet Encapsulation
Multiplexing based on VC and LLC
PPP over Ethernet (PPPoE)
PPP over ATM (RFC 2364)
ITU-T I.610 OAM F4/F5

Network protocols

WAN/LAN port switching
NAT (4096 NAT sessions maximum)
DHCP Server/Client/Relay
Universal Plug and Play (UPnP) compliant
Dynamic Domain Name System (DDNS)
Virtual server

Firewall/Access Security

Built-in NAT firewall
SPI (State-of-the-art Packet Inspection)
DoS Attack Prevention
Packet filtering (IP/ICMP/TCP/UDP)
Intrusion Detection System (IDS)
Demilitarized zone
Parental Control (URL blocking, scheduling)

Virtual Private Network (VPN)

Multiple PPTP/IPSec/L2TP gateways

Device Configuration/Management

Installation Wizard
Web GUI for configuration, firmware update
Lock code to prevent incorrect firmware update
Telnet
Syslog Monitoring

Quality of Service (QoS)

Prioritization/classification of traffic from LAN to WAN
Traffic shaping

USB Applications:

Samba Server
Printer Server

Power input

12 V / 1 A, external

Diagnostic lights

Food
LAN (1 to 4)
WLAN
DSL
Internet
WPS
USB

Dimensions (L x W x H)

182.8 x 127.8 x 32 mm

Weight

236 grams

Temperature

Operating: 0 to 40˚C
In storage: -20 to 70 ˚C

Humidity

5% to 95% non-condensing

Certifications

C-Tick
THIS
FCC
IC
WHQL
Wi-Fi certified
WPS

Etat: Neuf jamais utilisé

Catégories: Modems & Routeurs

Région: CONSTANTINE / ALGERIE

Publiée le: 14-02-2025 à 15:05:28
