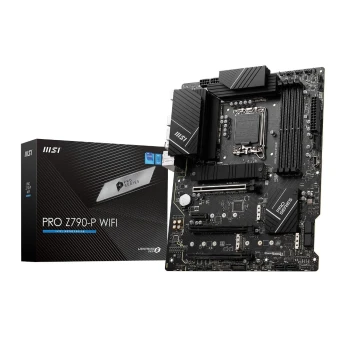

MSI PRO Z790-P WIFI

59 900 DA

GENERAL INFORMATION
Product name
MSI PRO Z790-P WIFI
Brand
MSIMSI
Model
PRO Z790-P WIFI
PROCESSOR
Processor support
Intel 1700
Number of CPUs supported
1
CHIPSET
Chipset
Intel Z790 Express
MEMORY
Memory format
4 X DIMM 288 pins (DDR5)
Memory Frequency(ies)
DDR5 5800 MHz
DDR5 5600 MHz
DDR5 5400 MHz
DDR5 5200 MHz
DDR5 5000 MHz
DDR5 6000 MHz
DDR5 6200 MHz
DDR5 6400 MHz
DDR5 6600 MHz
DDR5 6666 MHz
DDR5 4800 MHz
Memory type
DDR5
Memory technology
Dual Channel
Maximum RAM capacity per slot
48 GB
Maximum RAM capacity
192 GB
GRAPHIC
Integrated graphics controller
No
Compatible graphics core integrated in the CPU
Yes
Graphics chipset
None
EXPANSION SLOTS
Graphic connector(s)
1 X PCI Express 5.0 x16
1 X PCI Express 4.0 x16 (x4)
Number and Type of slots
2 X PCI Express 3.0 x1
Multi-GPU type
None
AUDIO
Audio Chipset
Realtek ALC897
Number of audio channels
8
NETWORK
Number of ports/Ethernet controler
Intel i225-V
Network standard(s)
Wi-Fi 6E
2.5 Gbps Gigabit Ethernet (2.5 GbE)
Bluetooth 5.2
Wi-Fi
Yes
STORAGE
RAID supported
Yes
Hard drives connectors
6 X Serial ATA 6Gb/s (SATA Revision 3)
4 X M.2 - PCI-E 4.0 x4
Number of M.2 slot(s)
4
Supported RAID Modes
10
5
1
0
CONNECTIVITY
Number of connectors for fans
6
Rear panel connectors
1 X HDMI Female
1 X DisplayPort Female
1 X USB 3.2 Type C
1 X USB 3.1
2 X USB 3.0
4 X USB 2.0
1 X RJ45 Female
1 X MiniDin 6 Female (PS/2)
BIOS Flash Update
6 X 3.5mm Jack Female Stereo
2 X SMA
Additional connectors
1 X LED RGB connector(s)
2 X Addressable LED RGB connector(s)
Front panel audio
Chassis intrusion
2 X +12V (Power supply P8)
1 X ATX 24 Pin
4 X Internal USB 2.0
4 X Internal USB 3.0
1 X Internal USB 3.1
1 X Thunderbolt 3
PHYSICAL CHARACTERISTICS
Motherboard format
ATX
Length
304.8 mm
Width
243.84 mm
EQUIPMENT
Advanced overclocking features
Yes
Use
Gamer
Multimedia
Office
LED
No

Etat: Neuf jamais utilisé

Catégories: Carte mere

Région: ALGER / ALGERIE

Publiée le: 07-12-2023 à 15:26:14
