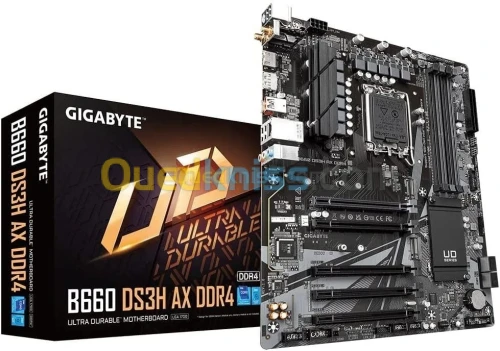

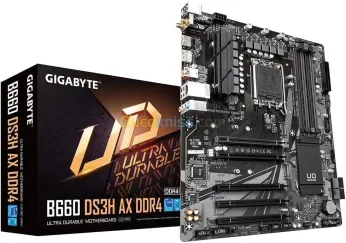

GIGABYTE B660 DS3H AX DDR4 ATX LGA1700 DDR4 USB3.2 M.2

44 900 DA

Carte mère Intel® B660 avec VRM numérique hybride 8+2+1 phases avec dissipateur thermique MOS, 2 x PCIe 4.0 M.2, LAN de jeu, WIFI 6 802.11ax, USB arrière 3.2 Gen 2x2 Type-C®

✅INFORMATIONS GÉNÉRALES :
✅Désignation : Gigabyte B660 DS3H AX DDR4
✅Marque : Gigabyte
✅Modèle : B660 DS3H AX DDR4

✅PROCESSEUR :
Socket LGA1700 : prise en charge des processeurs Intel® Core™, Pentium® Gold et Celeron® de 12e génération
Le cache L3 varie selon le processeur

✅CHIPSET :
Chipset : Intel® B660 Express Chipset

✅MÉMOIRE :
✅Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
✅ 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
✅ Dual channel memory architecture
✅ Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
✅ Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
✅ Support for Extreme Memory Profile (XMP) memory modules

✅GRAPHIQUE :
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
SLOTS D'EXTENSION :
Connecteur(s) graphique : 1 X PCI Express 4.0 16x
Nombre et Type de slots : 1 X PCI Express 4.0 16x (2x) - 2 X PCI Express 4.0 1x

✅AUDIO :
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

✅RÉSEAU :
Realtek® GbE LAN chip (1 Gbps/100 Mbps)

✅Réseau sans fil :
AMD Wi-Fi 6E RZ608 (MT7921K)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate

✅Port d'expansion :
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
4 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

✅Interface de Stockage :
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane™ Memory Ready

✅USB :
Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers

✅Connecteur du Panneau Arrière :
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks

✅Dimensions :
ATX Form Factor; 30.5cm x 24.4cm

******12mois*******

Etat: Neuf jamais utilisé

Catégories: Carte mere

Région: ALGER / ALGERIE

Publiée le: 20-02-2023 à 11:30:07
