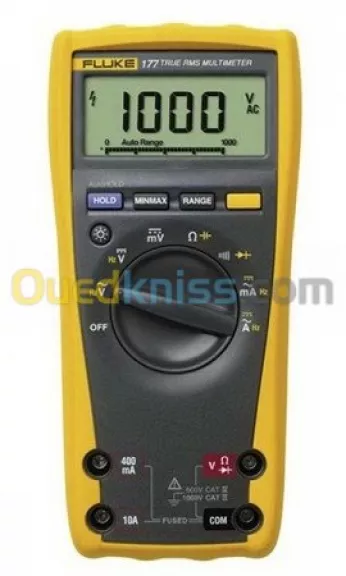

True RMS Digital Multimeter

58 500 DA

Features

True RMS digital multimeter with the features professional technicians prefer
Increases productivity with manual and automatic ranging, display Hold, auto Hold, and Min/Max-average recording
Measures AC and DC voltage to 1000 V
Delivers accurate True RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements
Safety rated CAT III 1000 V, CAT IV 600 V
Features digital display with backlight for working in dim lighting
Allows closed case calibration through front panel
Delivers the right features for electrical maintenance experts

With its precision, reliability, and ease of use, this digital multimeter is the preferred solution for professional technicians worldwide. Independently tested for safe use in CAT IV 600 V/CAT III 1000 V environments, this meter includes all the features you need to troubleshoot and repair many problems in electrical and electronic systems.

With this instrument users get True RMS voltage and current measurements, 6000-count resolution, manual and automatic ranging, and frequency, capacitance, resistance, continuity, and diode measurements. In addition, it provides 0.09% basic accuracy, a digital display with analog bar graph and backlight.

Applications

Electrical
Electronic systems
Fluke 177 Specifications
Voltage DC
Accuracy ±(0.09% + 2)
Maximum Resolution 0.1 mV
Maximum 1000 V
Voltage AC
Accuracy ±(1.0% + 3)
Maximum Resolution 0.1 mV
Maximum 1000 V
Current DC
Accuracy ±(1.0% + 3)
Maximum Resolution 0.01 mA
Maximum 10 A
Current AC
Accuracy ±(1.5% + 3)
Maximum Resolution 0.01 mA
Maximum 10 A
Resistance
Accuracy ±(0.9% + 1)
Maximum Resolution 0.1 Ω
Maximum 50 MΩ
Capacitance
Accuracy ±(1.2% + 2)
Maximum Resolution 1 nF
Maximum 10,000 µF
Frequency
Accuracy ±(0.1% + 1)
Maximum Resolution 0.01 Hz
Maximum 100 kHz
Environmental Specifications
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -22 to 140°F (-30 to 60°C)
Humidity (Without Condensation) 0 to 90% at 32 to 95°F (0 to 35°C)
0 to 70% at 95 to 122°F (35 to 50°C)
Safety Specifications
Overvoltage Category EN 61010–1 to 1000 V CAT III
EN 61010–1 to 600 V CAT IV
Agency Approvals UL, CSA, TÜV listed and VDE Pending
General Specifications
Battery Life Alkaline approximately 200 hours typical, without backlight
Dimensions 1.7 x 3.5 x 7.3" (43 x 90 x 185 mm)
Weight 14.8 oz (420 g)
