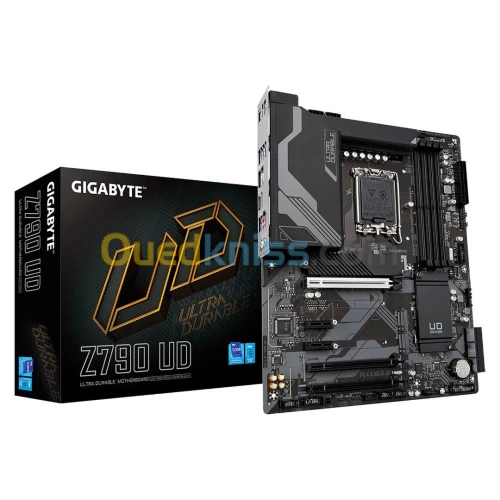

Gigabyte Z790 UD

58 900 دج

GENERAL INFORMATION
Product name
Gigabyte Z790 UD
Brand
GigabyteGigabyte
Model
Z790 UD DDR5
PROCESSOR
Processor support
Intel 1700
Number of CPUs supported
1
CHIPSET
Chipset
Intel Z790 Express
MEMORY
Memory format
4 X DIMM 288 pins (DDR5)
Memory Frequency(ies)
DDR5 7600 MHz
DDR5 7400 MHz
DDR5 7200 MHz
DDR5 7000 MHz
DDR5 6800 MHz
DDR5 4000 MHz
DDR5 4800 MHz
DDR5 5200 MHz
DDR5 6600 MHz
DDR5 6400 MHz
DDR5 6200 MHz
DDR5 6000 MHz
DDR5 5800 MHz
DDR5 5600 MHz
DDR5 5400 MHz
Memory type
DDR5
Memory technology
Dual Channel
Maximum RAM capacity per slot
48 GB
Maximum RAM capacity
192 GB
GRAPHIC
Integrated graphics controller
No
Compatible graphics core integrated in the CPU
Yes
EXPANSION SLOTS
Graphic connector(s)
1 X PCI Express 5.0 x16
1 X PCI Express 4.0 x16 (x4)
Number and Type of slots
1 X PCI Express 3.0 x16 (x1)
2 X PCI Express 3.0 x1
Multi-GPU type
CrossFireX
AUDIO
Audio Chipset
Integrated
Number of audio channels
8
NETWORK
Number of ports/Ethernet controler
1 X Integrated Realtek 2.5 GbE
Network standard(s)
2.5 Gbps Gigabit Ethernet (2.5 GbE)
Wi-Fi
No
STORAGE
RAID supported
Yes
Hard drives connectors
6 X Serial ATA 6Gb/s (SATA Revision 3)
3 X M.2 - PCI-E 4.0 x4
Number of M.2 slot(s)
3
Supported RAID Modes
10
5
1
0
CONNECTIVITY
Number of connectors for fans
4
Rear panel connectors
1 X USB 3.1
1 X USB 3.2 Type C
4 X USB 3.0
3 X 3.5mm Jack Female Stereo
1 X RJ45 Female
4 X USB 2.0
1 X HDMI Female
1 X DisplayPort Female
Additional connectors
Front panel audio
1 X ATX 24 Pin
2 X +12V (Power supply P8)
1 X Internal USB 3.0
2 X Internal USB 2.0
2 X Thunderbolt
2 X LED RGB connector(s)
2 X Addressable LED RGB connector(s)
BIOS Flash Update
1 X Internal S/PDIF
1 X Internal USB 3.0 Type C
PHYSICAL CHARACTERISTICS
Motherboard format
ATX
Length
305 mm
Width
244 mm
EQUIPMENT
Advanced overclocking features
Yes
Use
Gamer
LED
No
