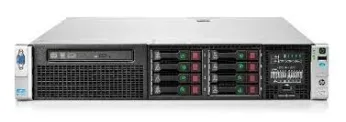

HP DL380 G8 CPU XEON 2X E5-2620 V2 / RAM 24GB / PSU 2X 460WATTS / NO HDD

320 000 دج

CPU XEON 2X E5-2620 V2
RAM 24GB
PSU 2X 460WATTS
NO HDD

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
Processor
One of the following
depending on model
E5-2600 v2 series Processors
Entry Processors
NOTE: All support up to 1333MHz DDR3 memory speeds.
Intel® Xeon® E5-2609 v2 (2.5GHz/4-core/10MB/6.4GT-s QPI/80W)
Intel® Xeon® E5-2603 v2 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W)
Base Processors
NOTE: All support up to1600MHz DDR3 memory speeds.
Intel® Xeon® E5-2640 v2 (2.0GHz/8-core/20MB/7.2GT-s QPI/95W, DDR3-1600, HT, Turbo2-
3/3/3/3/3/3/4/5)
Intel® Xeon® E5-2630 v2 (2.6GHz/6-core/15MB/7.2GT-s QPI/80W, DDR3-1600, HT, Turbo2-
3/3/3/3/4/5)
Intel® Xeon® E5-2620 v2 (2.1GHz/6-core/15MB/7.2GT-s QPI/80W, DDR3-1600, HT, Turbo2-
3/3/3/3/4/5)
Intel® Xeon® E5-2650L v2 (1.7GHz/10-core/25MB/8.0GT-s QPI/70W, DDR3-1600, HT, Turbo2-
2/2/2/2/2/2/2/2/3/4)
Intel® Xeon® E5-2630L v2 (2.4GHz/6-core/15MB/7.2GT-s QPI/60W, DDR3-1600, HT, Turbo2-
2/2/2/2/3/4)
Performance Processors
NOTE: All support up to 1866MHz DDR3 memory speeds.
Intel® Xeon® E5-2697 v2 (2.7GHz/12-core/30MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2-
3/3/3/3/3/3/3/4/5/6/7/8)
Intel® Xeon® E5-2695 v2 (2.4GHz/12-core/30MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo2-
4/4/4/4/4/4/4/4/5/6/7/8)
Intel® Xeon® E5-2690 v2 (3.0GHz/10-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2-
3/3/3/3/3/3/3/4/5/6)
Intel® Xeon® E5-2680 v2 (2.8GHz/10-core/25MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo2-
3/3/3/3/3/4/5/6/7/8)
Intel® Xeon® E5-2670 v2 (2.5GHz/10-core/25MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo2-
4/4/4/4/4/4/5/6/7/8)
Intel® Xeon® E5-2667 v2 (3.3GHz/8-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2-
3/3/3/3/4/5/6/7)
Intel® Xeon® E5-2660 v2 (2.2GHz/10-core/25MB/8.0GT-s QPI/95W, DDR3-1866, HT, Turbo2-
4/4/4/4/4/4/5/6/7/8)
Intel® Xeon® E5-2650 v2 (2.6GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1866, HT, Turbo2-
4/4/4/4/5/6/7/8)
Intel® Xeon® E5-2643 v2 (3.5GHz/6-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2-
1/1/1/1/2/3)
Intel® Xeon® E5-2637 v2 (3.5GHz/4-core/15MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 1/1/2/3)
E5-2600 series Processors
Entry Processors
NOTE: All support up to 1066MHz memory speeds.
Intel® Xeon® E5-2609 (2.4GHz/4-core/10MB/6.4GT-s QPI/80W)
Intel® Xeon® E5-2603 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W)
Base Processors
NOTE: All support up to1333MHz DDR3 memory speeds.
QuickSpecs HP ProLiant DL380p Generation8 (Gen8)
Standard Features
c04123238 – DA – 14212 Worldwide — Version 72 — September 28, 2015 Page 3
Intel® Xeon® E5-2640 (2.5GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Intel® Xeon® E5-2630 (2.3GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/8.0GT-s QPI/60W, DDR3-1333, HT, Turbo2-
3/3/4/4/5/5)
Performance Processors
NOTE: All support up to 1600MHz DDR3 memory speeds.
Intel® Xeon® E5-2690 (2.9GHz/8-core/20MB/8.0GT-s QPI/135W, DDR3-1600, HT, Turbo2-
4/4/4/5/5/7/7/9)
Intel® Xeon® E5-2680 (2.7GHz/8-core/20MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2-
4/4/5/5/5/7/8/8)
Intel® Xeon® E5-2670 (2.6GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo2-
4/4/5/5/6/6/7/7)
Intel® Xeon® E5-2667 (2.9GHz/6-core/15MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2-
3/3/3/4/5/6)
Intel® Xeon® E5-2665 (2.4GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo2-
4/4/5/5/6/6/7/7)
Intel® Xeon® E5-2660 (2.2GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo2-
5/5/6/6/7/7/8/8)
Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo2-
4/4/5/5/5/7/8/8)
Intel® Xeon® E5-2650L (1.8GHz/8-core/20MB/8.0GT-s QPI/70W, DDR3-1600, HT, Turbo2-
2/2/3/3/4/4/5/5)
Intel® Xeon® E5-2643 (3.3GHz/4-core/10MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2- 1/1/2/2)
Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/8.0GT-s QPI/80W, DDR3-1600, HT, Turbo2- 5/5)
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost
Technology, with 8, 7, 6, 5, 4, 3, 2 or 1 core(s) active.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may
depend on the quantity and type of DIMMs installed.
NOTE: Up to 2 processors supported. Mixing different processor models is not supported.
NOTE: For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model number indicates
the Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation,
00 = Processor SKU, and x = L for low power SKUs.
Cache Memory
One of the following
depending on model
30MB (1x30MB) Level 3
NOTE: For Twelve-core processors.
25MB (1x25MB) Level 3
NOTE: For Ten-core processors.
20MB (1x20MB) Level 3
NOTE: For Eight-core processors.
15MB (1x15MB) Level 3
NOTE: For Six-core processors.
10MB (1x10MB) Level 3
NOTE: For Quad-core processors.
5MB (1x5MB) Level 3
NOTE: For Dual-core processors.
NOTE: All processor models above list the L3 Cache associated with that particular processor.
Chipset Intel® C600 Series Chipset
QuickSpecs HP ProLiant DL380p Generation8 (Gen8)
Standard Features
c04123238 – DA – 14212 Worldwide — Version 72 — September 28, 2015 Page 4
Intel® E5-2600 and E5-2600 v2 Processor Families
NOTE: For more information regarding Intel chipsets, please see the following URL:
/.
Upgradeability Upgradeable to 2 processors (24 Cores)
NOTE: Processor upgrade available from Intel® Xeon® Processors E5-2600 to E5-2600 v2. Please
contact HP Technology Sales (), your local HP Re-seller, or reference the
following Customer Advisory: ProLiant Servers-Instructions for Upgrading an HP ProLiant Gen8 Server
from an Intel Xeon Processor E5-2600 to an Intel Xeon Processor E5-2600 v2, regarding critical details
before upgrading. An explanation of requirements and limitations are provided.
Up to 24 DIMM slots available for higher Memory capacity
FlexibleLOM connector for 1 Gigabit or 10 Gigabit networking options
8SFF Hard drive bays (16SFF with optional upgrade), 8LFF, 12LFF, or 25SFF
Optional 3 slot riser (x16, x8, x8), or 2 slot (x16, x16)
NOTE: To take advantage of the additional 3 PCI slot upgrade, the second processor must be installed.
Redundant Power Supply
Optical Drive (8SFF/8LFF only)
On System Management
Chipset
HP iLO (Firmware: HP iLO 4)
NOTE: For more information, visit:
Memory Protection Advanced ECC
NOTE: Advanced ECC uses single device data correction (SDDC) to detect and correct single and all
multi-bit error that occurs within a single DRAM chip. Both x4 and x8 SDDC are supported (x8 requires
lockstep mode).
Online Spare
NOTE: Memory online spare mode (also known as rank spare mode) detects a rank that is degrading
and switches operation to the spare rank.
Lock-step mode
NOTE: Memory Lockstep mode is used to correct a single x8 DRAM device failure on a DIMM. The DIMMs
in each paired memory channel must have identical HP part numbers.
Memory
One of the following
depending on model
Type HP SmartMemory
DDR3 Load Reduced (LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM)
DIMM Slots Available 24 (12 DIMM slots per processor /4 channels per processor/3 DIMMs per
channel)
Maximum Capacity
(LRDIMM)
768GB (24 x 32GB LRDIMM @1066MHz)
Maximum Capacity
(RDIMM)
384GB (24x 16GB RDIMM @1333MHz)
Maximum Capacity
(UDIMM)
128GB (16 x 8GB UDIMM @1600MHz)
Maximum Capacity
(HDIMM)
768GB (24 x 32GB HDIMM @1333MHz)
NOTE: HP memory from previous generation servers are not qualified or warranted with this HP
ProLiant Server. HP SmartMemory is required to realize the memory performance improvements and
enhanced functionality listed in this document for Gen8. For additional information, please see the HP
SmartMemory QuickSpecs at:

NOTE: LRDIMM, RDIMM, UDIMM, and HDIMMs are all distinct memory technologies and cannot be mixed
