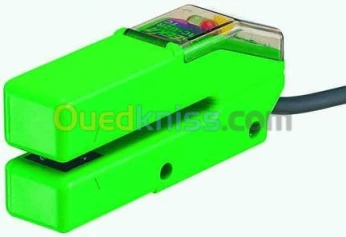

MC-U2GTC
Rating/Performance/Specification
Detection method U-shaped through beam
Detection interval 2 mm fixed
Power source 12 - 24 VDC ±10% / Ripple: 10 % or less
Current consumption 30mA or less
Output mode NPN / PNP open collector 2 outputs
Rating: Sink current (NPN), source current (PNP) 100 mA (30 VDC) or less
Operation mode Light ON/Dark ON selectable (with switch)
Response time 0.5 ms or less
Light source (Light wavelength) Green LED (525nm)
Indicator OPL: Operation indicator (Red LED), STB: Stability indicator (Green LED)
Volume (VR) SENS: 4 turn sensitivity adjustment without stopper provided
Switch (SW) *Light ON/Dark ON selector switch provided L: Light ON, D: Dark ON
*Emission intensity selector switch provided L: low powered, H: high powered
Short circuit protection Provided
Material Case: heat resistant ABS, Lens: Glass
Connection Cable type (outer diameter: dia.4mm) 0.2 mm2 x 4 cores, 3 m, black
Weight Approx. 120 g or less
Accessory Screwdriver for adjustment, operation manual
Environmental Specification
Ambient light 5,000 lx or less
Ambient temperature -25 - +55 C (non-freezing)
Ambient humidity 35-85%RH (non-condensing)
Protective structure IP67
Vibration 10-55 Hz / 1.5 mm amplitude / 2 hours each in 3 direction
Shock 100 m/s2 / 3 times each in 3 directions
Dielectric withstanding 500 VAC for 1 minute
Insulation resistance 500 VDC, 20 MΩ or higher
Rating/Performance/Specification
Detection method U-shaped through beam
Detection interval 2 mm fixed
Power source 12 - 24 VDC ±10% / Ripple: 10 % or less
Current consumption 30mA or less
Output mode NPN / PNP open collector 2 outputs
Rating: Sink current (NPN), source current (PNP) 100 mA (30 VDC) or less
Operation mode Light ON/Dark ON selectable (with switch)
Response time 0.5 ms or less
Light source (Light wavelength) Green LED (525nm)
Indicator OPL: Operation indicator (Red LED), STB: Stability indicator (Green LED)
Volume (VR) SENS: 4 turn sensitivity adjustment without stopper provided
Switch (SW) *Light ON/Dark ON selector switch provided L: Light ON, D: Dark ON
*Emission intensity selector switch provided L: low powered, H: high powered
Short circuit protection Provided
Material Case: heat resistant ABS, Lens: Glass
Connection Cable type (outer diameter: dia.4mm) 0.2 mm2 x 4 cores, 3 m, black
Weight Approx. 120 g or less
Accessory Screwdriver for adjustment, operation manual
Environmental Specification
Ambient light 5,000 lx or less
Ambient temperature -25 - +55 C (non-freezing)
Ambient humidity 35-85%RH (non-condensing)
Protective structure IP67
Vibration 10-55 Hz / 1.5 mm amplitude / 2 hours each in 3 direction
Shock 100 m/s2 / 3 times each in 3 directions
Dielectric withstanding 500 VAC for 1 minute
Insulation resistance 500 VDC, 20 MΩ or higher
