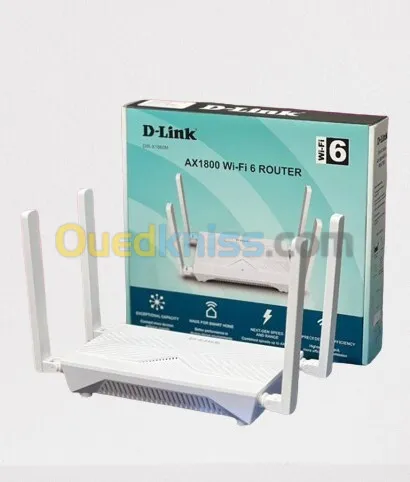

D-LINK DIR-X1860M
fiche technique:
Device Interface : 1x 10/100/1000 WAN Ethernet
3x 10/100/1000 LAN Ethernet
LED
Status LED
Buttons
WPS button to set up wireless connection
RESET button to restore factory default settings
Antenna
2x 5dBi 2.4GHz External Antennas
2x 5dBi 5GHz External Antennas
Power connector
Power input connector (DC)
WAN connection types
PPPoE
PPPoE Dual Stack
Static IP
Dynamic IP
PPPoE + Static IP (PPPoE Dual Access)
PPPoE + Dynamic IP (PPPoE Dual Access)
Network functions
DHCP server/client
Dynamic DNS
Static routing
Firewall functions
Network Address Translation (NAT)
Stateful Packet Inspection (SPI)
URL filter
MAC filter
IP filtering
Port filtering
DMZ and Port forwarding(Virtual server)
NAPT and ALG
Denial of Service (DoS) protection
VPN
PPTP/L2TP
Management
Firmware update via web-based interface
Saving/restoring configuration to/form file
Access settings through WEB GUI
Automatic NTP Date/time from Internet Time Server
TR-069 remote management
Logs and statistic
IPSec/PPTP/L2TP pass-through
Standards
IEEE 802.11 a/b/g/n/ac/ax
Frequency & Data Rate
2.4GHz: up to 600Mbps
5GHz: up to 1200Mbps
Wireless connection security
WPA/WPA2/WPA3 Encryption
MAC filter
WPS
Advanced functions
Wireless Client Mode
Wireless AP Mode
Wireless Repeater Mode
Mesh Ready
Multiple SSIDs
Wireless Schedule
Dimensions (L x W x H) : 228mm x 147.8mm x 34mm
Power : Input: 12V DC, 1A
Temperature : Operating: from 0 to 40 °C
Storage: from -10 to 70 °C
Humidity
Operating: from 10% to 90% (non-condensing)
